Phono-200
Technical data:
Input for high output pickups, optional for low output systems with transformer
Max. Input voltage over 100mV/1Khz at High Output Systems
Connections:
1x Chinch output
1x Chinch input
Dimensions:
Phono
depth: 27 cm
width: 14,5 cm
height: 9,1 cm
depth: 27 cm
width: 14,5 cm
height: 9,1 cm

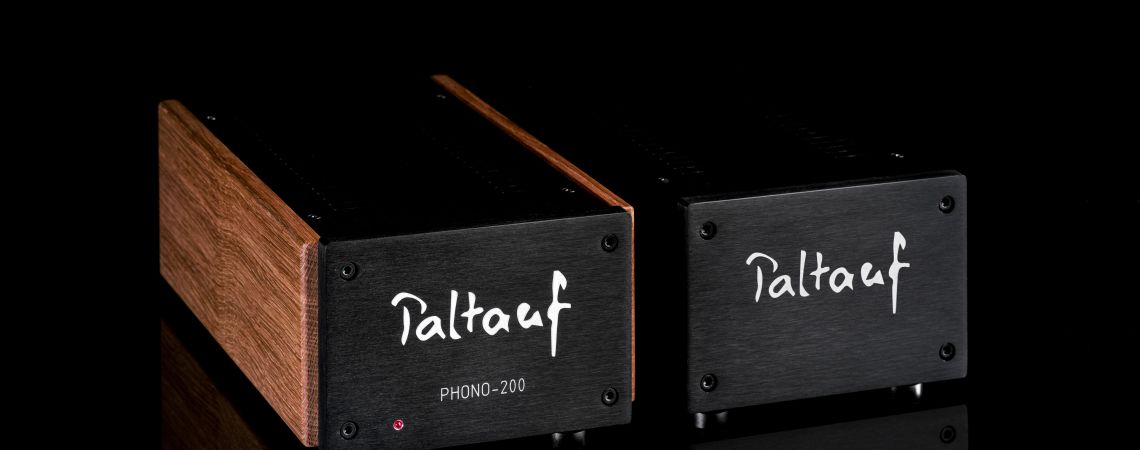

Phono 100 plus external power supply with tube rectification results in Phono 200! The result is a refined playback quality due to the cleaner DC voltage of the vacuum diode and the separate placement of the mains transformer and the audio circuitry.
Signal voltage amplification with tubes and semiconductors
FET - tube cascode with active load for extremely high, linear dynamic range.
Passive RIAA Equalization
For vivid, natural music reproduction with high accuracy (resistors 0.1%, capacitors +/- 1%).
Class A output stage
With MOSFETs and active load: broadband, high current capability, lowest distortion.
Power supply
Complex power supply with voltage stabilization for all stages of the amplifier.
Processing
High quality of all components, e.g. 1% and 0.1% precision resistors, top-quality film capacitors in the signal path, 105° electrolytic capacitors with long service life in the power supply, circuit boards with optimized conductor path.
Ask for more information.
